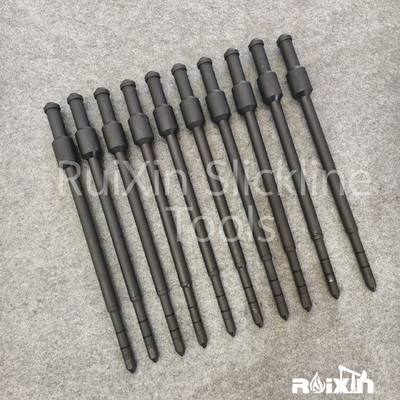

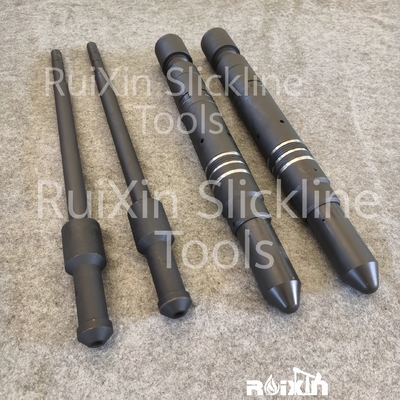

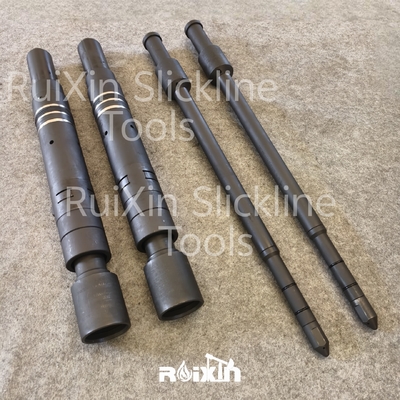

Equalizing prong and Lock Mandrel AFH Plug Slickline Tools 1.75inch ～3.81inch

Equalizing  prong and Lock Mandrel  AFH Plug  Slickline Tool 1.75inch ～3.81inch

Overview

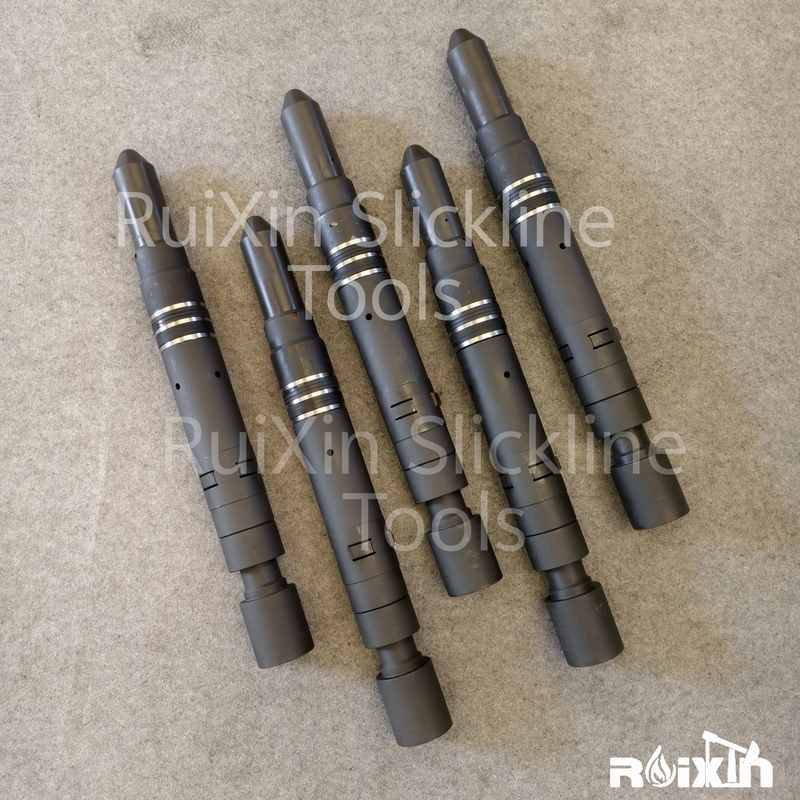

The AFH plug  uses a sealing assembly to seal at the designated position of the working cylinder, thereby sealing the pressure below the AFH type clog and eliminating the pressure above it, ensuring the safe operation at the wellhead.

Structural features

The AFH blocker is composed of an inner neck, a nut, a retaining ring, an elastic retaining ring, an outer cylinder, a sealing assembly, a lock core key, etc. When AFH type plug the well, lock button back, not sit quietly; When reaching the predetermined position, the lock core cannot move down. After the A-type down-entry tool is cut off by downward vibration, continue to press down. The lock core key will be pushed open under the effect of the conical surface of the inner salvage neck. Continue to press down the A-type down-entry tool. The lock core of the A-type down-entry tool will be retracted and the tool will be lifted. SB type cast fishing tools meet AFH type upper stabilizer bar, the AFH balance beam down to AFH plug reserve position, after the shock down, cut SB tools shear pin type cast and tie the SB type fishing tools. AFH type plug unlock nowadays into the JD for fishing tools grab seize AFH balance beam fishing neck on the balance beam. Then lower the GS fishing tool. After the fishing claw grabs the fishing neck inside the AFH type blocker, it vibrates upward to reorient the lock core key. Continue to lift it up to remove the tool.

• Size     2.813inch

Inner  Pulling  ID  3Iinch

Seal  Diameter   2.812inch

Seal  Pressure   70Mpa

Running tool      MR  Running tool

Pulling  Tool      JU,JD,SB,and GS Pulling tool

Any size can be customized according to customer requirements.

Notes

1. Before going down the well each time, it should be checked that the lock core key can contract freely without any jamming.

2. Inspect the sealing assembly to ensure it is intact (replace it in time if any damage is found).
